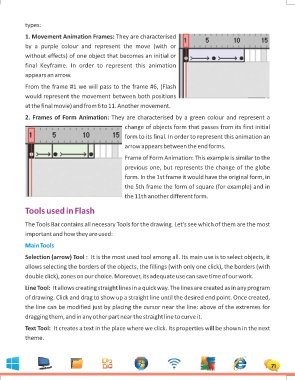

Page 71 - 1

types:
1. Movement Animation Frames: They are characterised
by a purple colour and represent the move (with or
without effects) of one object that becomes an initial or
final Keyframe. In order to represent this animation
appears an arrow.
From the frame #1 we will pass to the frame #6, (Flash
would represent the movement between both positions
at the final movie) and from 6 to 11. Another movement.
2. Frames of Form Animation: They are characterised by a green colour and represent a

change of objects form that passes from its first initial
form to its final. In order to represent this animation an
arrow appears between the end forms.
Frame of Form Animation: This example is similar to the
previous one, but represents the change of the globe
form. In the 1st frame it would have the original form, in
the 5th frame the form of square (for example) and in
the 11th another different form.

Tools used in Flash

The Tools Bar contains all necesary Tools for the drawing. Let's see which of them are the most
important and how they are used:
Main Tools
Selection (arrow) Tool : It is the most used tool among all. Its main use is to select objects, it
allows selecting the borders of the objects, the fillings (with only one click), the borders (with
double click), zones on our choice. Moreover, its adequate use can save time of our work.
Line Tool: It allows creating straight lines in a quick way. The lines are created as in any program
of drawing. Click and drag to show up a straight line until the desired end point. Once created,
the line can be modified just by placing the cursor near the line: above of the extremes for
dragging them, and in any other part near the straight line to curve it.
Text Tool: It creates a text in the place where we click. Its properties will be shown in the next
theme.
